Jazzy Carbon

00068
$2,695.00
In stock
1
Product Details

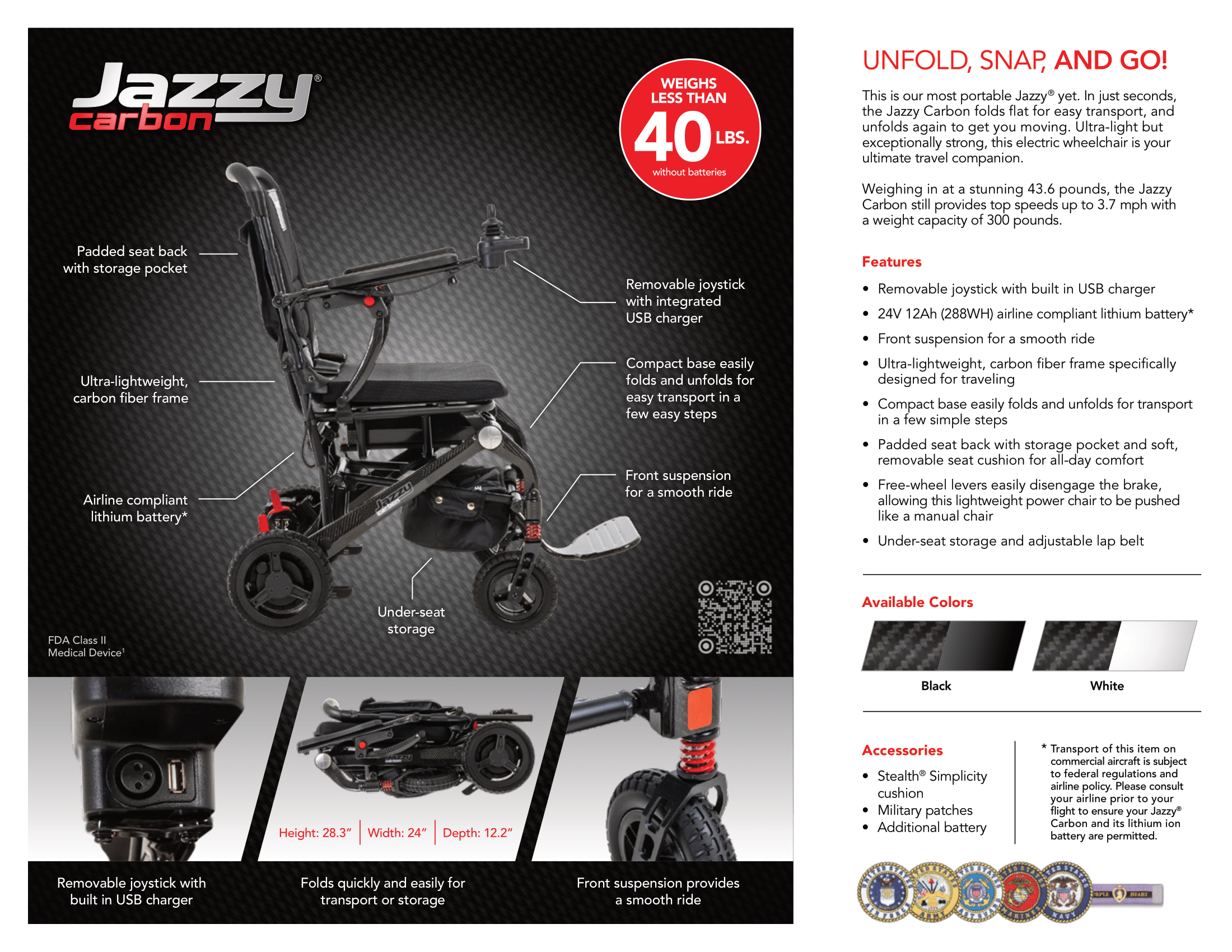

You know Jazzy® for its industry-leading performance and quality. Now let’s talk about portability. the Jazzy® Carbon uses ultralight but exceptionally strong carbon fiber technology for its frame and a lightweight, reliable lithium-ion battery.

With carbon fiber technology, the Jazzy® Carbon Power Wheelchair becomes your greatest travel companion.

You know Jazzy® for its industry-leading performance and quality. Now let’s talk about portability.

Jazzy® Carbon uses ultralight but exceptionally strong carbon fiber technology for its frame and a lightweight, reliable lithium-ion battery.

Travelers keep their Jazzy Carbon charged and standing by for spontaneous jet-setting adventures. They know it breezes through airport security, easily stows on the plane and gives them the mobility support they need to make the most of their travels.

Weighing in at a stunning 39 pounds without the battery, Jazzy Carbon still provides top speeds up to 3.7 mph with a weight capacity of 300 pounds.

When does a folding power chair also put comfort first?

Jazzy Carbon folds down in just a few quick motions, which makes it easier to transport in cars, planes and trains. But don’t let portability fool you. Jazzy Carbon has tall, terrain-dominating wheels and a front-end suspension system, plus a comfy seat cushion to sustain you through everything your busy day throws at you.

Maybe you’re taking a weekend trip to visit the grandkids, and they’ve got your Saturday booked with stops at all their favorite places.

Or maybe you and your pals are taking a once-in-a-lifetime trip to an all-inclusive resort, and you don’t want to miss a single moment of it.

Jazzy Carbon gives you mobility and control to do it all.

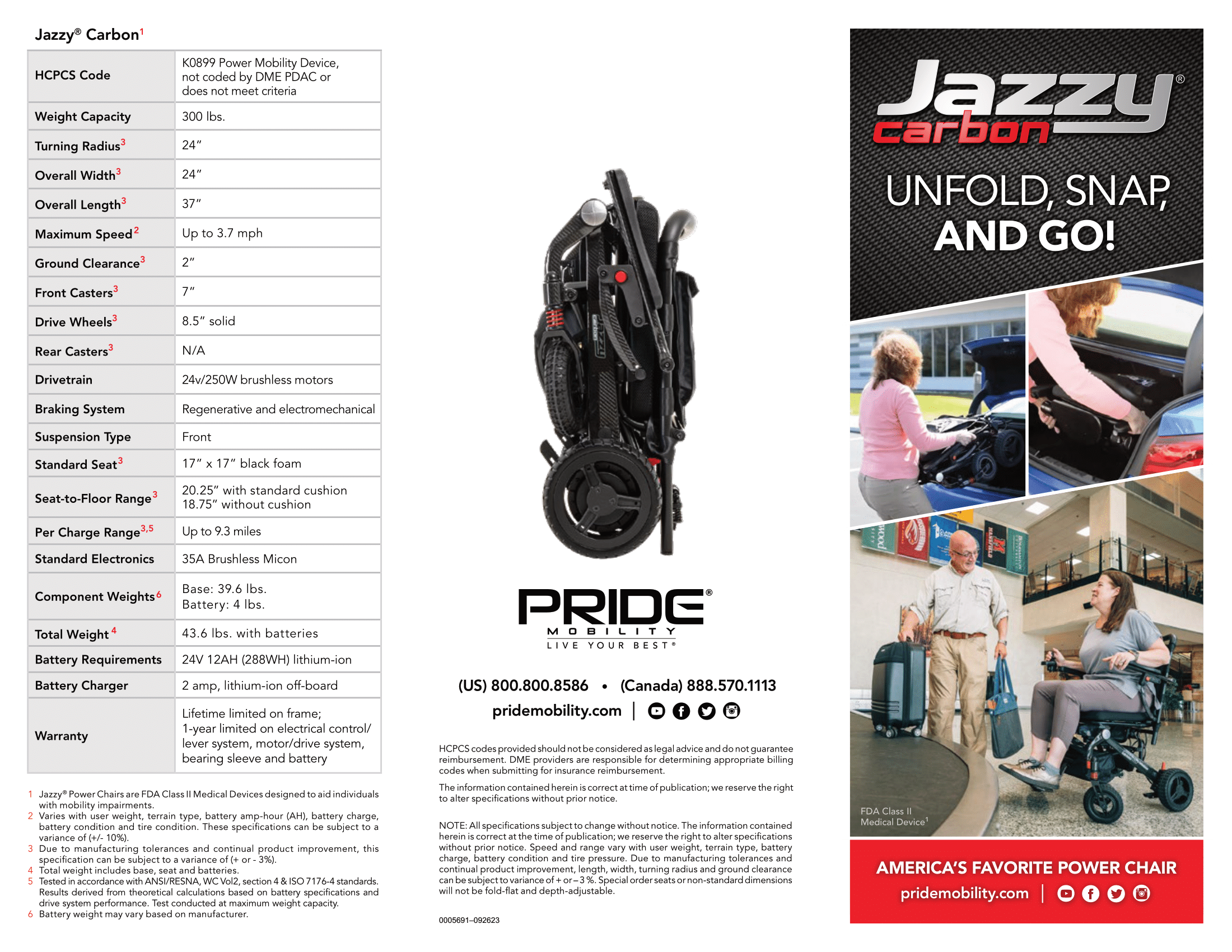

  • Specifications
CATEGORY SPECIFICATION
Model
Jazzy® Carbon
Weight Capacity 300 lbs.
Turning Radius1 24"
Maximum Speed1 Up to 3.7 mph
Ground Clearance3 2"
Overall Length3 37"
Overall Width3 24"
Seat-to-Ground Height 19"
Seat-to-Foot Platform Height 14.5" (no adjustment)
Front Wheels 7"
Rear Wheels 8.5"
Seat-to-Floor Range with Standard Cushion 20.75"
Seat-to-Floor Range without Cushion 18.75"
Power Elevating Seat NA
Seat Weight(s) NA
Battery Sizes 24V 12AH (288WH)
Suspension Front
Total Weight Without Batteries3,5 39 lbs.
Total Weight With Batteries3,5 43.6 lbs.
Heaviest Piece When Disassembled3 N/A
Standard Seating Material: Black, Foam
Dimensions: 17" x 17"
Maximum Seat Size 17" x 17"
Per Charge Range Up to 9.3 miles
Drivetrain 24v/250W Brushless motors
Standard Electronics 35A Brushless Micon
HCPCS Codes Non-coded: K0899
Braking System Regenerative and electromechanical
Battery Weight4 4 lbs.
Battery Charger Off-board, 2-amp lithium-ion
Weight of Heaviest Piece NA unit folds and doesn't disassemble
Warranty Frame: Lifetime limited;
Drivetrain: 1-year limited;
Electronics: 1year limited;
Batteries: 1-year limited
Notes:
1 Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition, and tire condition. This specification can be subject to a variance of (+ or -) 10%.
2 Tested in accordance with ANSI/RESNA, MC Vol2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.
3 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or -) 3%.
4 Battery weight may vary based on battery manufacturer.
5 Includes standard seat weight.
All specifications subject to change without notice. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.

Note: Transport of this item on commercial aircraft is subject to federal regulations and airline policy. Please consult your airline prior to your flight to ensure your Jazzy® Carbon and its lithium ion battery are permitted.


  • Testing Standards & Warranty

Meeting and Exceeding High Standards for your Peace of Mind.

Your Pride product has undergone thorough product testing to ensure safety, durability and performance.

Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.

The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).

The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team.

All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.

Some of the items our testing criteria include are:

  • Product Stability & Brakes Effectiveness Tests
  • Fatigue & Impact Strength Verification Tests
  • Overall Product Performance Verification
  • Dimensional Requirement Compliance
  • Product Durability & Reliability Testing
  • Material Protective Coating Testing Verification
  • Misuse and Abuse Testing
  • Ergonomic Verification
  • Environmental Testing for Adverse Weather Operation Conditions
  • Electronic Systems Performance and Durability
  • Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
  • Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
  • UL94VO Flammability Testing for Compliance of Plastic Components
  • Electromagnetic Compatibility (EMC)

Warranty

  • 5-Year limited warranty on frame
  • 13-month limited warranty on electronics
  • 13-month limited warranty on drive motors
  • 13-month limited warranty on batteries

‎ ‎ Download Warranty Insert

  • Manual

Select link below to go to Pridemobility website for further information on this model.

Pridemobility.com
